Welcome to our Support Area
Before contacting us please read the product help file.

You are always welcome to share your questions, suggestions.

Topics:

Installation

HASP Keys

Operation

Theory

Residential Version - Specific Items



The GLD Installation Process

Good news!  Beginning with GLD2016 and later, it is no longer necessary to uninstall the program to load a new update!  The GLD software is digitally signed and will operate on all "modern" versions of Windows, including Windows 11.  The current version of GLD works with:



Step 1:  Run the setup program.  In some environments or versions of Windows, security settings may require you to run as administrator for installation.  Right click the executable program to display this choice.


Step 2:  You will see the following or similar screens:


Read and accept the software end user license agreement.  This is a legal agreement.
Legal Agreement


Enter the user name and company information that you would like GLD to use.
User Information


Accept the default program destination.  You may change the location if needed, but we recommend using the default for ease of future operations.  Note that the working file folders for GLDs and GLD2016 are located in different locations than previous versions.
File Location


Check and install the program using the displayed information.  You may go back and correct any items that need to be changed.
Ready to Install


The setup process is underway.  Several screens resembling this will display your progress.

Now Installing


When the initial setup is completed, this screen will be presented.  Uncheck the Launch program box if you are installing the full (non-trial) version.


Plug in your USB hardware key.  The device drivers for the key will load automatically.  This may take a few minutes as the internet is checked for updates.  If you expand the applet in the lower right tray area, a progress box similar to below will be displayed.  If you do not wait for this process to complete, GLD will only launch in the trial mode.  Note that GLD and GLD2016 are the only version that will load seamlessly with Windows 8.x, Windows 10, and Windows 11.   Earlier versions of GLD are not fully compatible with Windows 8.x, W10 and Windows 11 requirements.

Hardware Key Drivers


The red light will illuminate on your hardware key and when all three drivers have updated the program is ready to operate!  A splash screen on GLD launch will present the version information to show the successful installation of the software and key drivers.



Upgrading from Earlier Versions (i.e.: 3.x, 4.x, 5.x, 2009, 2010, 2012, 2014):

 Q.  I want to upgrade from a previous version to the latest GLD.  How do I do this and will I be able to continue to use my previous version?

 A.  Upgrading is an easy process from any previous version.  If you have loads data or project files, you should consider copying the data to the new file folders after the installation of the new version is complete.  Note that the locations for folders have changed for GLD2016 and later to comply with security requirements of the newer Microsoft OS.  Your project and loads files are backwards compatible with GLD but may require opening and resaving to store the new file location information.  While the upgrade process should not disturb files that were not included in the previous installation process, it is always a good idea to preserve a backup of important data.  Please note that customized heat pumps from previous versions of GLD will NOT be available in the GLD installation as a completely new updated pump file library is provided.

Since GLD uses a key licensing system, the key profile is programmed specifically to your installation of the current product.  In general, you will be unable to use your previous version sfter the license key is updated. The HASP key contains the complete program license and will be programmed to recognize only the current version and features.  A previous version may still be installed on your system but it will revert to a trial mode of operation.

Updating your license key to the current version is a straight forward process.  After you download and install the program, please follow these instructions for updating your license key:


Updating the Current Version of GLDs with the Latest Build

 Q.  I got a notice or see that my version of GLDs has an update available.  How do I update?

 A.  GLD will have interim builds of the program that will be available free of charge to users with the latest GLD software family (GLDs, GLD2016 etc.).  To check if your GLD is the latest build, please use the menu pulldown for:  (help --> about)  to read the build number.  It will look like this:







The screenshot above is for illustration only.  If your "Version" (or build number) is different from our current build number, please download the latest version from our site.



Beginning with GLD2016 and later, there is no need to do anything other than to execute the update file to load the latest software updates.



For versions of GLD2014 and earlier, you will need to uninstall your current GLD from the Windows Control Panel.  Look for "Add/Remove Programs" or "Programs and Features" in your version of Windows.  This process will retain all of your projects and work EXCEPT for any custom heat pumps that you may have created.  You will need to save the pumps folder before uninstalling.  After uninstalling, please run the new installer and accept the defaults to keep the program in the exact same folders location.  See the installation process above if you have any questions regaring installation.




Using GLD with Multiple Users on the Same Machine

 Q.  We want to have multiple users for GLD use the same PC.  Is there anything special that we need to do?

A.  The latest GLD offers the ability for multiple users to have their own libraries and configurations for saving projects to their own folders.  The new GLD installer will create a separate file structure for each user in their "My Documents" folder and is essentially duplicated for each user in their respective "My Documents" folder.  This allows for each user to retain their own projects, logos, and simulations.  The only items that remain common to all users are the Help file documents and the Heat Pump library.

For GLD2014 and earlier, there is just a single folder structure that all users share.  All users share the same configuration and files.



Installing GLD with Limited User Permissions

 Q.  When installing GLD, I am challenged for a system administrator password.  Is this normal?  Will I see this each time GLD is opened?

A.  GLD installation by a "Standard" Windows user will always be challenged for a system administrator login.  This is because a "Standard" user in Windows or a custom user in a corporate environment often does not have sufficient permissions to install new programs.  This is purely a security issue related to Windows and allows companies and users to control the installation of software in their particular environment.  The installation challenge will only appear on the initial installation.

A "Standard" user can install GLD without further intervention once the system administrator or local user with admin privledges provides the sign-in during the installation.  The software will be installed and configured for the user that started the installation.

When there is more than one user on the same machine, for each time a new or different user opens GLD while they are logged in, a dialog box will appear for 5-10 seconds as GLD sets the configuration for that particular user.  The dialog box will look something like this:



After initial setup, this dialog box will only appear if a different user has opened GLD.  This does NOT require any additional credentials or administrative intervention.


Installation Errors

 Q.  On installation, I receive a message that says I have another version installed and setup cannot continue.  You receive a message similar to the below dialog box:


Setup Cannot Continue


 A.  Users of GLD2016 and later will not see this message as the installer has been updated.



You are using an older version of GLD (GLD2014 and earlier) and have previously installed GLD or have an earlier revision or trial version of the software.  The installer package is a full installation, not an upgrade.


Installation errors with newer versions of Windows
Vista, Windows 7, 8 or 10 (32 bit and 64 bit)

 Q.  I receive an error telling me I need to be the administrator to install the software?

 A.  Security has gotten more restrictive due to malicious activities that affect the corporate workplace IT environment.  Beginning with GLD2016, we have relocated files and folders into locations which are safer for our users but some workplace security still require extra measures.

Download and save the software from our website to your computer.  While most users will not find this extra step necessary, some workstations are running tightened security.  Right-click on the installation file and select run as administrator.  This step applies to all versions of Windows Vista and above.  The security is tightened on the newest versions of Microsoft OS.  Files should install after these steps have been taken.

Run as administrator



I  can see my projects in GLD (2014 and Earlier) but can't find them in Windows Explorer.    (Issues that happen with W7 / W8 / W10 but didn't happen in XP)

Q.  After saving a file in GLD, I want to send a copy of my project to someone but I can't seem to find the file when I look under the GLD Program folder.  I can see the files in GLD and they have a little padlock on the icon.



NOTE:  This FAQ applies to users of GLD2014 and earlier.  GLD2016 and later uses a different folder structure and is NOT affected by Windows file virtualization.



A.  APPLIES ONLY TO ***GLD2014*** AND EARLIER

Users of Windows 7, 8 & 10 have reported that their files are missing.  Actually, the files are not missing but are being stored in a different location.  Due to security issues that were introduced in Windows 7 (file virtualization), some programs try to write files to locations that are blocked by the UAC (user account control) Windows 7 OS.  This is not a problem specific to GLD software and is a function of Windows 7, 8 and 10 security.  Users with standard rights, particularly in the Home version of Windows use "virtual folders" that are specific to each user, so it is likely that your project files have been stored in your "virtual folder".  Read further if you want to know the specifics.



Depending on your computer security settings, W7, W8 and W10 may also try to prevent GLD from writing to its own folders and this will cause strange behaviors with a lot of technical software.  For a quick solution, take ownership of the folders.  GLD2014 has a built-in fix to allow the user to take ownership.



Here is an example of how to find the "missing files":


You saved a finance project in GLD.  You expect it to show up in the folders under GLD:

When you look in Windows File Explorer, it is not there, yet you can open it in GLD.  Check here:

This can apply to other types of projects in GLD, such as Vertical or Horizontal projects; zone files; imported loads files and others.  The user security settings and version of Window are the controlling issue and you can seek further assistance from your IT staff to make changes to stop this from happening.  Otherwise, if your work data files are missing from under the GLD program folders, you can find them in the "virtual store" heirarchy that Windows has created.  There is no need to move them as GLD can see them in either location.



There are other useability issues that this can cause so we recommend that you perform the "take ownership" operation.



Changing virtualization behavior by Windows 7:

     1: Take ownership of the Gaia Geothermal folder tree and

     2: Assign full rights to the user or group.



You will need to have administrative rights to make this change and your IT department can help.   This is the least intrusive fix available.  The folder permissions should be set to full control for the user, as shown below.  If you make this change, you can move your files back into their folders within GLD.  Making this change will not affect security in any other ares of your system and is the safest way to change the Windows behavior for GLD.  This fix will also work for other programs having similar issues.






The Easy way to Take File/Folder Ownership

Take Ownership Context Menu Want a convenient tool to allow this operation from within Windows File Explorer?  GLD2014 automatically installs the tool into Windows File Explorer to take ownership.  If you are using an earlier version of GLD, you will need to download this registry tweak (for Windows 7,  Windows 8 and Windows 10/11) ) and run on your system.  (The registry file is zipped for download security)   It adds the "Take Ownership of file/folder" option to the context menu (right click) for any file or folder.  (File courtesy of PC Magazine)  When you apply the take ownership option, a box will open and show the different files being processed and is the expected behavior.  The screenshot to the left is a look at a typical context menu with the "Take Ownership" command added.

When using with GLD, please apply to the "Gaia Geothermal" folder that is installed into:

C:\Program Files (x86)\Gaia Geothermal

This will change the ownership of both the files and folders that are part of the Gaia Geothermal tree structure.  This will allow GLD to manage and use its own folders.

If you want to remove the menu item from your system, download this registry tweak which will remove the menu option.  Note:  It does not undo any folder or file permissions for which you have taken ownership.




HASP SRM (Hardware Key) Errors

 Q.  On installation, I encounter:  "HASP SRM Error: Operating System Not Supported"

 A.  The USB hardware key uses drivers from the key manufacturer (Gemalto/SafeNet) to communicate with your computer OS.  In most cases, the correct drivers will be installed but when this error is encountered, you may manually install the file.  You may encounter this dialog box:


For older versions of GLD (2009, 2010) the installer uses an older version of the HASP drivers.  Windows Vista and Windows 7 updates have been know to generate the error message and the workaround is to install a current driver first so that the GLD Installer will skip the HASP driver when it discovers a newer driver is already installed.



For GLD2009 - GLD2012:  Vista, W7, W8 Users:

For convenience, we have provided a direct link to the HASP run time installer  and it can be downloaded here.



For GLD2014 - Later GLD:  W7, W8 and W10 Users:

For convenience, we have provided a direct link to the appropriate HASP run time installer  and it can be downloaded here.



Alternately, for the a specific Gemalto/SafeNet driver, you could  visit their site at   https://supportportal.gemalto.com and download their latest driver set.

In the event that you need to completely remove the HASP drivers and are having difficulties, SafeNet has an uninstaller that will remove registry and file fragments of the HASP Driver.  For your convenience, a direct link to download is here.



After loading the HASP driver, run the GLD Installation again and it should now complete correctly.


If you are using a network version of GLD, please refer to our Network HASP Key information


After W10 Update, GLD Opens in Trial Mode

 Q.  GLD worked fine before the last Windows update and the key is lit but now opens in trial mode.

 A.  Windows 10/Windows 11 updates are often major installations that actually are loading an entire OS to replace your previous version of Windows 10.  Generally, the process shouldn't disturb your existing programs but we have had instances where the license manager doesn't get registered or setting are changed in Windows.  Your key will usually still be lit but that does not mean the license manager is running.  This is a Windows 10/11 update issue, not an issue with GLD.  We have two solutions:

1:  Reinstall GLD.  Download the software from our site to make sure that you have the latest build.  No need to uninstall anything, just reinstall.

2:  If the first step does not cure the issue, install the separate license manager for the license key. This will show as a new program in the Control Panel>Progrems and Features and uses a more robust installer than GLD to force the installation of the license manager needed to operate GLD.



For GLD2014 - Later GLD:

For convenience, we have provided a direct link to the HASP run time installer  and it can be downloaded here.


Alternately, for the a specific Gemalto/SafeNet driver, you could  visit their site at   https://supportportal.gemalto.com and download their latest driver set.



If you are using a network version of GLD, please refer to our Network HASP Key information

HASP Key Installation Errors


 Q.  On installation, everything works up to the installation of the HASP drivers.  The installation fails and is rolled back to the original state.

 A.  You may already have HASP drivers installed from a previous key installation or for another product that uses a HASP key.  It will be necessary to remove the previous HASP drivers.  GLD will install new drivers that should also work for other products that use the HASP keys from SafeNet.  If other products that use the HASP drivers need to be updated after installation, please run the Gemalto/SafeNet installer below, AFTER installing GLD.



For GLD2009 - GLD2012:  Vista, W7, W8 Users:

For convenience, we have provided a direct link to the appropriate, and tested. HASP run time installer  and it can be downloaded here.



For GLD2014 - Later GLD:  W7, W8 and W10 Users:

For convenience, we have provided a direct link to the HASP run time installer  and it can be downloaded here.


Alternately, for the a specific Gemalto/SafeNet driver, you could  visit their site at   https://supportportal.gemalto.com and download their latest driver set.



If you are using a network version of GLD, please refer to our Network HASP Key information


When Launching the GLD Network Client, an Error Message Appears

 Q.  When launching the network version of the GLD,
       I get a "Network License Limit Exceeded" Message.

 A.  This message can be caused by a few different problems:

  1. The Network Client is being usied with a standalone license key
  2. There is already a user(s) that have checked out the available licenses
  3. The network license key is missing
  4. The network license key is expired

GLD offers either a standalone version of the software or a network version.  Both versions look very similar when running but require different physical license keys.  If the wrong workstation client is used with the wrong license key, the software will either jump immediately to "Trial Mode" or you will get the "Network License Limit Exceeded" message.




Double check that you have not inadvertently installed the wrong version of the GLD software.  An easy way to check is to look in the Control Panel of your PC for Programs and Features and the description will show if the "Network" version of the GLD Design Suite is installed.  If the wrong version is installed, simply remove it and install the correct version.



If your workstation cannot see the network license, you will get the "license limit exceeded" message.  You can try opening http://localhost:1947 in a browser to see if the license manager can see the key.  If it can't, this will require more trouble shooting and generally, once the network license is configured correctly, this message will only show if there are too many users or if the license is expired.



If your network license is expired, the steps above will allow you to use the license manager to see the condition of the license.  Here is a screenshot of what you are looking for:



In the above example, this is a (3) seat license and the presence of "Expired" in the restrictions column simply means that the license key must be renewed.  This applies for GLD2016 and later.


HASP License Manager File for Network Server


 Q.  We Need to Move our Network License Key to a New Server.  What is Needed?

 A.  When moving the network license key to a new server, unplug the key from the old server and move it to the new host.  The new host will need to have a USB port available for the key and the run-time license manager must be installed.  Here is a link to download the license manager:



For GLD2016 and Later GLD:  Drivers for a Windows Server:

For convenience, we have provided a direct link to the HASP run time installer  and it can be downloaded here.


If you need a driver for any other type of server, you should visit the Thales/Gemalto/SafeNet site at   https://supportportal.gemalto.com for other driver files.

During the installation of the license manager, the software will attempt to create a firewall exception to Port 1947.  If it requires intervention by the operator, please create rules to allow TCP and UDP exceptions to allow traffic on this port.


GLD Only Launches in Trial Mode

 Q.  I have my key inserted but the software always opens in "Trial Mode"




A.  There are several possible issues:


1:  The key for your installed version must be plugged into your computer and must be lit.  If you install a different version of GLD and try to use a key that was programmed for a different version of GLD, it WILL NOT work.  The installed version of GLD must match the key.


2:  If the key is not lit, the drivers are not installed or the key is not recognized.  See the previous FAQ for instructions to load the drivers manually.



3:  The key is lit but the software still opens in trial mode.  If you are sure that you have the correct key for your version of GLD, you can check to make sure that the correct drivers are loaded by opening a web browser (ie:  Chrome; IE; Firefox, etc) and enter this web address:  http://localhost:1947   You should be presented with a license management screen that will provide further information about your key.  If you get a "page not found" error for this address, your drivers may be corrupted and need to be reinstalled.  See the previous FAQ for instructions to re-load the drivers manually.



4:  If you are trying to use a standalone GLD key on a network that already has a network key for the network GLD version, the keys will have a conflict.  You will need to either disconnect from the network or remove the network key in order to get a standalone installation to work properly.  This situation is extremely rare and should only occur if the customer is trying to use software for a GeoCube installation where the full GLD Design Suite is also installed.  Please contact us if you have this situation and we can assist.



If you are using a network version of GLD, please refer to our Network HASP Key information


False Virus Scan Alerts  (from AVG or others)

 Q.  I have a virus scanning program that is identifying "GLDLicenseUpdater.exe" as being infected with a virus.  What do I do?  Is the program infected?

 A.  GLD uses a third party licensing system from Gemalto/SafeNet, the makers of the HASP USB key that ships with GLD.  The file that is being identified as a threat is the tool that is used to reprogram the firmware in the USB key to activate features of GLD.  This file is SAFE to run.  We are working with a couple different antivirus companies that are mis-identifying the file as being infected.  In the meantime, you should create an exception for the file named "GLDLicenseUpdater.exe".  It is typically located in this folder:  C:/Program Files (x86)/Gaia Geothermal/GLD20xx/Extras/



Sorry for the inconvenience while we work with the vendors to update their white lists.


Updating your HASP Key (Dongle) for a new version of GLD

 Q.  I already own GLD and have a HASP key.  I want to add features or update my key to a later version of GLD.  Do I need to sent the key back for reprogramming?

 A.  We can program some keys remotely, depending on your software version.  If you have GLD2016 or newer, GLD Residential or GLD Thermal Conductivity Module, the GLD HASP Key (Dongle) generally does not need to be sent back for programming as we have included utilities to allow the key to be reprogrammed in the field.

If you have earlier versions of GLD (2010, 2012, 2014, etc) Professional, Premier or any earlier version, the license key must be exchanged for the latest hardware.



For GLD2016 and newer, the licensing system has changed and we need to retrieve license data from the old key prior to issueing a new license key.  Customers that are upgrading GLD2009-GLD2014 to the new GLD will need to return the old key as the new key system requires a completely different key.  Sorry for the inconvenience.



For instructions on the reprogramming the key after purchasing an upgrade or adding feaures, click here.


Retreive Key Data for Updating License Key

 Q.  I want to update my license key.  GLD Sales is requesting key information.  How do I retreive it?

 A.  Please view the instructions to retreive the C2V key file here.


Apply New License to Key

 Q.  GLD Sales sent me a file to update my license key.  How do I apply it?

 A.  Please view the instructions to apply the V2C key file here.



Can I have multiple versions of GLD?

Q.  I want to run multiple versions of GLD.  Is this possible?

A.  There is probably no reason to have multiple versions of GLD since the latest version is  backwards-compatible with all of your previous work.  Additionally, the latest version has the latest heat pump data and calculation theory.


If you want to run a previous version and the current version, it is possible because GLD creates a separate top level folder for each version.  The requirement to run multiple versions involves the need for multiple keys.  Since we update the license key from previous versions to operate the current version, it is not likely that you will have multiple keys.  If you do have multiple keys for different versions, the different versions WILL run.



If you have not uninstalled the previous version after upgrading, both versions will run, but only the version with a current key will be fully functional.  We recommend that after upgrading, removing the previous version is good practice and will help to free up space in your system.


Remote Desktop Operation; Application Virtualization

 Q.  I want to remotely log into my computer and run GLD but it does't work.  What am I doing wrong?

 A.  As far as GLD is concerned, there is nothing wrong with using GLD in this manner.  Customers have asked about operating GLD remotely by leaving their PC on when they are out of the office but it doesn't always work.  The reason for this is that the HASP key and associated software recognize some remote clients as an attempt to defeat the license key restrictions and will present the user with the trial screen.  This behavior is not part of GLD and is due to the licensing from the SafeNet HASP Key.  Specifically, the HASP Key will NOT allow a utility such as the Microsoft Remote Desktop to operate the software via another machine because it recognizes that the user is not on the machine with the key.  It may, however, allow other utilities to operate GLD remotely.



Today, there are numerous web based utilities that are available for everyday use to allow a user to remotely access their desktop and we have found that some seem to work better than others.  An example of a utility that is known to work is RealVNC and this has been used by some companies to allow users to remotely work on GLD.  There may be other programs that will also work and it IS NOT the intention of the GLD Software to prevent you from doing this.  The SafeNet HASP Key drivers are regularly updated via Windows update services and GLD does not control the security nuances of how the HASP key views these remote utilities.  This means that customers with GLD software are welcome to use the software via a remote client but it is not something for which we are able to directly provide support.



Q.  I want to virtualize my installation of GLD but it doesn't work.  What am I doing wrong?

A.  The same general conversation regarding remote use and licensing of GLD is true of application virtualizing software.  GLD does not support any virtualization software platforms and the HASP key and license manager will generally not allow the software operation to be distributed to another machine.  The general rule of thumb is that GLD will only be available to a workstation with the software installed locally and the key installed in the same workstation.  Customers that want to make GLD available on multiple machines without moving a key from station to station should consider the GLD Network version, which broadcasts the license but still requires client-side software installation.



There are many specialized ways that customers are trying to use the technology, including virtualized machines, virtualized hosts and etc.  We can support the basic operation but in the event you run into an issue with the license manager behavior, we suggest that you contact the support department for the license manager:


Gemalto / Safenet Technical Support Website

https://supportportal.gemalto.com/csm/
Phone: 1-800-545-6608 US Toll Free
Phone: 1-410-931-7520 International
email:  support@safenet-inc.com

The Ground Loop Design vendor number for Safenet is:  80625
The Gemalto/Safenet product is:  HASP HL Net Time



GLD "75 or 76 Path Error" or other Path Errors

Q.  When doing a design, I sometimes get a Path Error dialog box

A.  GLD Projects are using a number of files to perform design work.  Some of the files are built-in library files and some are user generated.  When working with user generated files, such as an Average Block Load or Vertical Borehole, GLD creates a relationship that allows the files to interact with each other.  Normally, this is not an issue when all of the files are located in their default locations on the user computer.  In a network environment, there are unknowns with folder permissions and GLD needs to be able to write temporary changes to the project and loads files.  Many networks are locked down and will not allow GLD to write to the folders where the user files are residing.  This can occur even when the user has permissions because their machine operations may not have the right permissions.  A user that is experiencing this type of an issue may see an error message such as the one shown here.



The best solution is to copy your load and project files to the folders within GLD that are the default locations.  When finished, your files may be copied back to the network for later use.  The question below this:  ("File Locations")  provides a full list of the default locations that GLD uses.



If you can't find your files in these locations in Windows 7, 8 or 10, refer to this note.

If you seem to be unable to run calculations without getting this kind of error, you may need to set the file and folder permissions in the GLD folder structure.  Please follow steps here


Another problem that can cause this type of error is if GLD and the user do not have full permissions to read/write/modify in the folders that GLD needs to use.  For GLD2016 and the current GLD, the GLDesign folder in the user documents folder must have full permissions available.  In file explorer, please check that the full permissions exist for the user that is running GLD.  If they don't, the quickest way to correct it is to take ownership of the documents folder to restore the permissions that are needed.  Please follow steps here


File Locations

 Q.  Why can't GLD find my data files?

 A.  If you have recently updated to the latest GLD, your folders and files are residing in a different location than previous versions.  Additionally, when you copy old projects to GLD, you may have to open and save those projects to reestablish the linkage/location of the file to the current settings.



When you create and save a borehole project, average block load, piping project or thermal conductivity test, there is a specific location that GLD expects to see the files.  You are free to store your project files to other locations but it will require extra steps to link your projects and loads, etc.  For most satisfactory operation, allow GLD to store projects and loads to the default locations.  These files can be copied to a network or external project vault when you are finished and ready to move on to a new project.  The latest GLD and earlier versions use different locations.  Here are where the different versions of GLD expect to find files:



PROGRAM FILES:  (All versions)

USER GENERATED FILES:  (GLD; GLD2016)

C:\Users\(User)\Documents\GLDesign

USER GENERATED FILES:  (GLD2014 and Earlier)

C:\Program Files(x86) for 64b OS or C:\Program Files for 32b OS

LIBRARY FILES:  (GLD; GLD2016)

C:\ProgramData     Note: may be a hidden folder on some systems

LIBRARY FILES:  (GLD2014 and Earlier)

C:\Program Files(x86)    for 64b OS or C:\Program Files for 32b OS

If you can't find your files in these locations in Windows 7 and newer, refer to the note above.



Saving your working files to a location other than the GLD default will cause difficulty in sharing files with co-workers.  Some of the project and zone files generated by GLD contain references to connected files which are relative to where the user has saved them.  When you give one of these files to another user, the saved relative links do not exist on the other computer and the files must be regenerated to correct the problem.  By saving files to the default locations, it is possible to share with others since their GLD installation will look in the correct location, by default.

ASHRAE Files from the GSA Module

 Q.  I want to use the ASHRAE files that are generated by the GSA Module.  Where can I find them and what is the format?

 A.  Beginning with a midterm release of GLD2012 and later, the GSA module now creates ASHRAE outputs in *.csv file formats that work with Excel or other text editors.  The program currently does not include a button to take you directly to the files, so you can use Windows Explorer to retreive the files.  The standard location is:


GLD and GLD2016:

C:\Users\(User)\Documents\GLDesign\Finance\Finance Data



GLD2014 and GLD2012:

C:\Program Files (x86)\Gaia Geothermal\GLD2014\Finance\Finance Data

(Note):  If you are using XP or a 32b version of Windows 7 or Vista, please remove the (x86) from the above path.



The files are automatically generated as a CSV file with each press of the calculate button and will be named:  FinGeoData_MM-DD-YYYY_HH_MM_SS.csv.  The latest files are always from the last time that calculation was performed in the GSA module and if alternate scenarios were included in your project model, there will be an "alt" in the file name for each alternate non-geo solution.

CFD Module Installations

 Q.  The Piping/CFD Module Won't Open  (GLD2010 and GLD2012 only)

 A.  This module uses a programming interface that is not used in the other GLD modules.  While everything else seems to work properly, the piping module will not function unless the file below is properly installed and registered.  This is an easy fix.  In the GLD20xx --> Extras Folder, manually run the PropertyWindow83_00_setup.exe file.  After running, your system should now properly communicate with the GLD20xx CFD module.  This applies to GLD 2010 / GLD2012 Premier editions.



Grayed out variables

 Q.  Can I change variables that appear grayed out in GLD?

 A.  If values appear gray in your program it means that you either don't have these features available in your version or your program is running in "trial" mode. If you are running in "trial" mode and you haven't purchased the software, click here. If you have already purchased the software and you are running in "trial" mode, please check to ensure that your USB key is properly connected to your computer.

You can verify that your key is connected by looking to see if your USB key is illuminated.  If illuminated, you can check the HASP manager at:  http://localhost:1947 .  A browser window will open and present the HASP Administrator, which will tell you if the workstation is correctly seeing the HASP key.


Grayed out results in cooling or heating column after calculation

 Q.  What do the grayed out numbers in the results mean?

 A.  The grayed out numbers in the results come from running the full dominant load against the  less significant design.  i.e. if there is a design that has a cooling dominant load, then the cooling design will be bolded in the results.  The numbers that appear grayed out will satisfy the heating demand but the long term ground effects and EWTs will be run as if you applied the full cooling load to the smaller, heat demand satisfying, field parameters.



Iteration errors

 Q.  What does it mean when a error box appears that contains:
      "calculations fail" and "Iterations=xxx"?

 A.  This error generally appears when a design will never stabilize due to the design of the field.  Calculation failed. Results do not converge. When the program detects that it will not reach a solution based on the design parameters that have been input, it will give a message such as this.  The number of iterations shown is not significant except that a very low number of iterations indicates that it did not take GLD long to see that the design would not work.  The first variable that should be evaluated is the pipe/borehole spacing.  If borings are located in too close of proximity to each other this error will develop readily.  This warning is set up to let designers know that the particular design is risky and may not work.


Vista issues

 Q.  How do I get GLD to work with Vista?

 A.  Older versions of GLD will work properly with Windows Vista by adjusting some simple settings. Find the location where you installed GLD and look for the file labeled GLDesign.exe.  Right click on that file and select properties off of the pop-up menu that will appear.  In properties select the "run as administrator" option.  Once that option is selected GLD should run properly in Windows Vista.


The latest versions of GLD are intended to work on W10.



EWTs and total capacity appear as  negative values

 Q.  Why am I getting negative values for results in fields other than the ground temperature change?

 A.  This error is extremely rare and has only been observed in the pond loop module. If you experience this error in the vertical or horizontal module please let us know.  To correct this problem simply reselect your heat pump and recalculate the results.  This should correct any issues related to these findings

GLD2014 and later have incorporated "Performance Bracketing" messages that should indicate if your design has exceeded the operating specifications of the selected heat pump.  If you are seeing the message on the loads module or on the vertical/horizontal design modules, then your results are not valid until your design parameters are reset to a range that is within the manufacture's specified temperature limits for the heat pump.  GLD will interpolate the pump curves but cannot extrapolate data beyond the design specs.



.GT2, .GT3, .GT4 Files

 Q.  Can GLD use these files or only .GT1 files from Trane Trace?

 A.  GLD Only uses GT1 files.  To make your .GTx files work simply change the number to 1 at the end of the file.


APS File Export

 Q.  How can I export an APS file to my IES software?

 A.  GLD (Premier Version Only) can export and import, an APS file into the Average Block Loads Module.  The file will contain hourly loads profile data that GLD will extract into the Average Block Loads Module.  You should place the APS file in the Loads folder in the Hourly Sub-Folder.  The APS file may be quite large as it contains a lot of information that is not needed by GLD.  After importing the APS file into GLD, the hourly data check box in the Average Block Loads Module will be checked.



To export the APS file from GLD requires that the borehole simulation to be calculated in the hourly mode for at least 1 hour.  The APS Export option in the File --> Export pulldown menu will be greyed out if the simulation has not been calculated as described above.  The resulting exportable file will contain data regarding different temperatures that IES needs in order to use the GLD calculations.  The information that is unrelated to the loopfield simulation will be stripped out of the APS file and the resulting export will always be smaller than the original APS import.



GLD can also generate an exportable APS file if an hourly loads profile is imported into the Average Block Loads module via a CSV file.  The export will contain only simulation temperature data that is usable by IES<VE> and the same conditions apply as starting with an APS file.



Note:  IES file structures continue to evolve and GLD is dependent on having the apporpriate linking libraries from IES to facilitate a successful export.  Due to changes in the file structure used by IES, APS exports from GLD  no longer work.  This is a chage required by IES<VE>, not GLD.



IES recommmends simply using CSV file export from IES to send the appropriate loads data to GLD for simulation.  GLD will still export the G-Function information for loads programs that can utilze the data.




IDF File Export (G-Function Data)

 Q.  How can I export G-Function information for my design?

 A.  GLD uses G-Functions to simulate a design when doing a vertical borefield design in the Monthly and Hourly calculation mode.  The G-Function is specific to the theory used for monthly and hourly calculations and is not available in Design Day mode, as Design Day uses a different theory that does not use G-Functions.



To export the IDF file from GLD requires that the borehole simulation to be calculated in the Monthly or Hourly mode.  The loads must be coming from the Average Block Load Module and the input must contain monthly or hourly data.  After calculations are completed, the export option will become available at: File--> Export File--> Export IDF   The file exported will be named Gfunct.idf by default and may be renamed for future identification.  This file contains the equations that are needed for any program that uses this information such as Trane Trace.



Note:  The Zone Manager Loads Module cannot produce a G-Function file because it uses Design Day calculations exclusively.



LOAD Data Requirements

 Q.  We Have Manual-J Load Data For Our Designs.  Can GLD Use This?

 A.  We typically get this question from Residential deisgners and occasionally from small Commercial designers.  Most of the time, these are users that are primarily conventional HVAC designers.  The short answer is NO.


Manual J provides peak loads only and is intended for use with conventional HVAC system design.   To properly simulate and solve a geothermal system design scenario, cumulative load data is also required.  Preferably monthly or hourly loads data for accurate simulations.   Geothermal designs need to balance the total energy necessary, in and out of the ground, to match the building and equipment loads with the ground heat exchanger.   This is NOT the same exercise that is used to provide a minimum equipment capacity sizing of equipment for a conventional design.


An analogy might be like knowing the power required to run a motor but have no idea how often or how long it runs.  You can’t size a power source without both pieces of information unless you have unlimited power available.  Conventional systems essentially have unlimited utility power and don’t worry about the cumulative energy.  Geothermal HVAC is a balancing act and must have both pieces of information because you are matching the energy exchange, not just peaks.


In short, Manual-J data is NOT intended for geothermal designs and is NOT adequate to simulate a properly designed ground heat exchanger.  There are good tools for providing loads data for geothermal design, including but not limited to: Trane Trace, Carrier HAP, IES and numerous others.



Simulation of Large Loopfields

 Q.  I'm trying to simulate a large loopfield and I can't tell if GLD is working.  Do I need to do something differently?

 A.  Normally, GLD displays a blinking color square in both the loads and projects module that indicates if your modules are linked and also shows activity.  This display works well for loopfields up to a few hundred boreholes when working in the Design Day or Monthly modes.  As the loopfields get larger, GLD is being asked to perform so many calculations that the indicators can appear to be doing nothing because it requires that sets of calculations be completed prior to changing the indicator color.



As an example, if you perform an Hourly simulation, you are warned that the calculations will take a long time for ANY size loopfield because you are now multiplying already complex operations by another x8760 times for each interactive data point.  Users that try to run an hourly simulation for multiple years may need to wait for several hours for a simulation to complete.  Unfortunately, this is normal and requires a high end processor to improve your performance.



Another example is where the design calls for thousands of boreholes.  A loopfield that has 3,000 to 4,000 boreholes doing a Monthly simulation may take 40 minutes to one hour to complete.  Since each borehole has to interact with neighboring boreholes, the sheer number of calculations is staggering for each datapoint and then is repeated for each year and requires trillions of operations to complete the simulation.  During this time, GLD may not look like it is doing anything but if you check the task manager, you will see that the CPU will be consumed by 20 to 50% depending on the system memory and CPU capabilities.



As a rule of thumb, the designer should make an effort to run a short simulation that gives a result that is "in the ballpark" in terms of desired results and save the long simulations (ie: hourly or 20 years) as one of the later steps to fully simulate the conditions.


Regional Temperature Swings in Horizontal Models

 Q.  My local government or weather agency does not keep Regional Temperature Swing data and I can't find my location in your table.  I don't know how to proceed.  Can I compute this data?

 A.  We understand that you may have to do some approximations to determine Regional Air Temperature Swing or Regional Soil Surface Temperature Swing.  In a Horizontal design, this data is important since the local temperature swings will influence the performance of the horizontal heat exchanger. In the Soil Tab of the Horizontal Design Project Module, you will need to enter (3) values into GLD (for the Ground Temperature Corrections at Given Depth)


Coldest / Warmest Day of Year: If your coldest average day of the year is (example: February 1) day 32; and your warmest average day of the year is (example: July 1) day 181; these are the figures that you need for the coldest and warmest days of the year.

Using the absolute calendar day numbers (1 to 365) allows the program to be used in either the Northern or Southern hemisphere. You should be able to find typical data for your area.


Regional Temperature Swing: The Regional Air Temperature Swing number generally comes from your regional weather reporting service or a government agency. Since not every designer can obtain exact data from a local agency, we can suggest an alternate solution. Here is an example:


Use this example data (formula works for Northern or Southern Hemisphere):
   Average monthly air temperature in January: +0.4 Celsius
   Average monthly air temperature in July: +23.6 Celsius
   Average yearly air temperature all year round: +12.7 Celsius

An acceptable approximation for Regional Temperature Swing can be calculated by using the following equation:

    (| Avg annual temp – Avg January temp| + |Avg July temp – Avg annual temp|)/2



In the example:
  Absolute value of average annual temp minus average January temp = |12.7 -0.4| = 12.3
  Absolute value of average July Temp minus average annual temp = |23.6-12.7| = 10.9

(12.3+10.9)/2 = 11.6 degrees (approximate regional air temperature swing)




Modeling period for horizontal systems

 Q.  How long should set the modeling period for during a horizontal design?

 A.  On shallow horizontal installations, it is common to see the modeling period set to one year. This is done because shallow systems are strongly influenced by surface conditions and have a tendency to refresh themselves on an annual basis.  With shallow systems the energy you are moving to or from the building won't store the same as vertical systems will.  With the lack of storage effect, increasing the modeling period will only lead to larger install sizes.  However, systems that are installed deeper in the soil may need to be evaluated over a certain amount of time.  Current theory indicates that it is necessary to install deeper than ~30-40 feet to eliminate the influence of the surface conditions.  GLD takes this into account in the calculations.





Calculation Methods

 Q.  I get different answers when I use Design Day vs. Monthly vs. Hourly Calculations

 A.  GLD gives you several methods to simulate a project design.  Your results will be no better than the loads data that is provided to size the loopfield.  Depending on the data and the design module in use, GLD can use different methods to arrive at a design.


Design Day:  This design method uses peak load values and annual loads (AEFLH) values in conjunction with what is sometimes called the ASHRAE or Bluebook method. It is the fastest way to quickly size a loopfield although in some instances, the minimal loads data used by the model presents limitations. Design Day and annual energy loads may be imported from numerous third party products.  Design Day calculations are available in the Vertical, Horizontal or Surface Water modules.


Monthly:  This design method uses monthly peak and total loads for heating and cooling and provides a more nuanced and detailed analysis of how the system performs over time. GLD uses what are known as "g functions" and a variation on the borehole superposition model/LUND method of calculation to calculate loopfield performance over time. Since this method uses a much more detailed loads profile, it is able to calculate much more detailed results. Throughout much of the world, this model is the standard. Due to the greater detail in the loads profile and the use of "g functions", results calculated from this model can vary from those of the Design Day method. In some instances (but certainly not all) significant loopfield reductions can be achieved using this model compared to the Design Day model. Imported loads from advanced building energy simulation tools such as the IES , Trane Trace and Carrier HAP may be used for the monthly simulation method.  Monthly calculations are only available in the Vertical Borehole module.


Hourly:  This design method uses an hour by hour data set from a single year. Sometimes referred to as the 8760 method, this calculation intensive method requires significant computational resources and a single simulation for a large system may take hours. GLD at present time limits the simulation length to three years for this reason. A modified version of the Monthly method is used to predict hourly performance of the loopfield. 8760 hourly data is gradually becoming recognized as the industry standard simulation technique. GLD can accept hourly inputs from the IES, the Trane Trace program or from a properly formatted spreadsheet.   Hourly calculations are only available in the Vertical Borehole Module in the Premier or Complete versions of GLD.



 Q.  When Should I Use the Grid Builder?  Can it be Used With Design Day?

 A.  The Grid Builder allows the design of an irregular shape of loopfield.  While most design programs allow a "regular" rectangular loopfield grid, GLD has the ability to design most any shape and provide valid simulations.  The mathematics behind the Grid Builder are based on using G-function theory to simulate the interactions between boreholes in regular or irregular loopfield layouts.  This is part of the Lund Monthly/Hourly method of loopfield design.  Whenever you use the gridbulder to design your loopfield, the simulation will be based fully or partially on the Monthly/Hourly models.

The Grid Builder is still available when running a Design Day calculation but the simple approach of the Design Day "energy-buildup" is replaced with a more rigorous, actual calculated temperature of the soil near the bore. That allows us to use more complex bore arrangements, and is theoretically more valid for energy buildup in the soil, even though it's based on the line vs cylindrical source, because it properly accounts for the heat buildup due to surrounding heat elements.  So when you use the Grid Builder with a Design Day simulation, the calculations are a "hybrid model".  Design Day cannot work with an irregular loopfield without this "hybrid model" approach..

If you create a rectangular grid in the Grid Builder and compare to the same rectangular grid in Design Day calculations, your results will not match, due to the way the the different methods of calculation handle the simulation.  The approximations are reasonable for smaller systems.  For large loopfields, the GLD results using the Monthly/Hourly method of calculation will typically be more conservative but more accurate and can use the full loads data of a complex but more accurate hourly load.  The Design Day model should not be used for a larger loopfield as it was never intended for that purpose.




 Q.  Each Hourly and Monthly Simulation is saved in a report.  What do the detailed column headings mean?

 A.  Each time you run an hourly or monthly simulation in GLD Premier, a file is generated and saved for closer examination.  These reports are located in either:

C:\Users\{UserName}Documents\GLDesign\Hourly Data
C:\Users\{UserName}Documents\GLDesign\Monthly Data

The files can be opened in Excel and provide the simulation data for each project that is calculated in GLD.  The reports look similar to this:



Depending on the simulation type, here is what is provided in each report. These are the definitions of the individual columns of the results written to the '.txt' files in the "Monthly Data" or the "Hourly Data" folder for each Monthly or Hourly borehole design that's generated with every new calculation. The values are written in terms of each month or each hour, depending on the mode used in the calculation.




Activating LEAD+ Licensed

 Q.  How do I activate LEAD+?

A.  (Applies to GLD2012 and earlier)  When you downloaded GLD2012 Residential (or earlier) from our website, two versions of LEAD+ came with it.  (LEADPlus is optional and available for sepatate purchase with GLD2014 and later Residential version.)  One file is a "Trial" version and the other is a full licensed version.  To find the full licensed version of LEAD+ simply navigate to:


c:\Program Files (x86)\Gaia Geothermal\GLD20xx\LEAD


Create a shortcut to the file named LEADPlusSRM.  Place that short cut on your desktop for convenient use.  Double click the short cut you just created and the licensed edition of LEAD+ should open.


LEAD+ Installation, Hardware and Software Operation Requirements

 Q.  Do I need to have special hardware or software to run the LEADPlus Program?

 A.  If your system hardware meets requirements to run GLD, LEADPlus hardware requirements have also been met.  Additionally, LEADPlus utilizes MS Excel to provide the functionality to the multiple sheets of information and Excel must be installed on the system that you will be using to run the LEADPlus software.  While the LEADPlus software will open without MS Excel installed, the functionality will be limited and you will be unable to save your results.  The LEADPlus software utilizes a third party macro from "DoneEx" that relies on Excel for its functionality.  When you save data, the "AddIns" pulldown is used to save your project data in LEADPlus.  Without Excel installed on your system, this functionality will be unavailable.  MS Excel versions 2000 to 2013 are acceptable to operate LEADPlus 2014 and LEADPlus 2016.  Note that OpenOffice will not support LEADPlus.



NOTE:  LEADPlus for 2012 and earlier require MS Excel versions 2000 through 2010.
Office 365/Office 2013 will NOT work for versions of LEADPlus 2012 and earlier.


Important Note:  The Microsoft Excel  (versions 2000 - 2013) that is installed on your system must be the 32 bit version in order for the LEADPlus tool to operate properly.  The operating system itself may be either 32 bit or 64 bit.

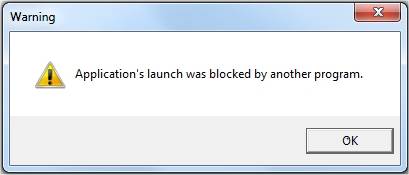

64-bit Workaround. Attempting to run compiled Spreadsheets with a 64-bit installation will display the error message, "Application launch blocked by another program."


  LEAD Plus Error with 64 bit Excel


The choice of 32-bit or 64-bit was made upon installation of Microsoft Office or Excel and the decision is reversable by reinstalling as a 32-bit application. Refer to your Microsoft documentation for additional guidance. For a more technical explanation of Excel 32-bit vs. 64-bit benefits and issues refer to this Microsoft document:
http://technet.microsoft.com/en-us/library/ee681792.aspx.



You will also find this Microsoft document helpful:
http://officepreview.microsoft.com/en-us/support/choose-the-32-bit-or-64-bit-version-of-office-HA102840825.aspx


Excel Requirements

 Q.  Why must I have Excel installed on my computer?

 A.  The DoneEx XCell Compiler is an Excel add-in. You can think of the compiled executable as a wrapper for the underlying Excel file. Upon program launch, LEADPlus will look for a compatible Excel version and, if not found, LEADPlus may or not launch.  If it does launch without Excel present, the functionality will be limited and calculations cannot be performed.  The DoneEx compiler is specifically written for Excel and will not run with the OpenOffice suite.



As stated in the previous FAQ item, 32 bit Office is required.



Note:  LEADPlus 2014 & LEADPlus 2016 will work with Excel 2002 and newer, including Office 2013 and Office 365

          LEADPlus for 2012 and earlier require MS Excel versions 2000 through 2010.
          Office 365 / Office 2013 will NOT work for versions of LEADPlus 2012 and earlier.

Loads Information for GLD Residential

 Q.  I have Manual J Loads Information. How do I use this in GLD?

 A.  Manual J is a powerful methodology for performing residential peak heat loss/gain calculations for conventional HVAC systems. Peak heat loss/gain calculations are a necessary but insufficient data set for designing residential geothermal loopfields. For geothermal designs, an estimate of the duration (or total energy) loads is also necessary. A conventional HVAC system essentially has an "unlimited energy supply", wheras a geothermal system design is attempting to balance the structure to the ground heat exchanger, which is not an "continuously unlimited energy supply".  Duration (or total energy) loads are an estimate of the total heating and/or cooling requirements for a project over an entire year. Typically, they are stated in the form of total BTUs, total kWr or annual equivalent full load hours (AEFLH).  For residential designs, a designer MUST estimate the duration loads, preferably through the use of an appropriate energy modeling tool that can perform such an analysis. Designing a geothermal system without accurate duration loads can likely result in a poorly sized system that doesn't perform as expected.

LEAD Plus or some other loads tool will provide the necessary data to correctly quantify the peak and total energy.  Manual J, by itself, is NOT enough to model a Geothermal design.

See LOADS FAQ.
